IAI - IX-NNN Ultra-Compact SCARA Robots

Palm-sized unit capable of driving maximum payload of 1 kg

With arm lengths of up to 180mm, the IX-NNN is a palm-sized SCARA unit capable of driving a maximum payload of 1 kg. The dynamic performance and highly rigid body of the SCARA ensures outstanding high-speed performance achieves a cycle time of 0.35 second.

• Ultra-compact size ideal for installation in limited spaces
  • A maximum work envelope of 360 mm can be ensured in a small installation space of 47(W) x 132(D) mm, enabling substanital size reduction of your production line.
• Offering rated and maximum lad capacity of 0.2kg and 1kg, respectivley
  • Despite their small size, a 0.2-kg load can be transferred at high speed. If the accelerarion is reduces, a load of up to 1kg can be transfered.
• High-speed performance achieving a cycle time of 0.35 second
  • The dynamic performance and highly rigid body ensures outstanding high-speed that is among the best in its class

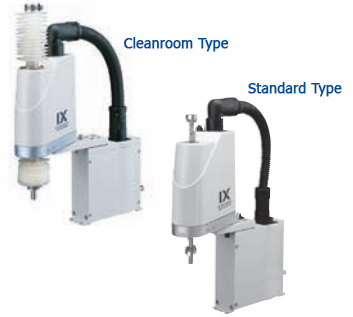

• Standard and Cleanroom specifications aith arm lengths of 120mm, 150mm and 180mm
• Optional connector-type cables for connection between the controller and actuator
