Multi-Zone Ring Lights


ring light banner

The RM75-4Z and RM140-4Z are designed for compact 3D photometric stereo applications. Compact and powerful, the low-angle mini ring lights work best for dark-field ring applications and radial illumination lighting configurations.

The RM75-4Z and RM140-4Z are sold with the 4ZMD four-channel LED driver, which permits control of up to four separate lights or light zones, either independently or simultaneously, in any combination and at any intensity level. The 4ZMD strobes the lights independently for photometric and multi-light applications.

When connected to SVL’s new programmable LED Light Manager (LLM), each channel of the RM75-4Z or the RM140-4Z can be set to continuous on, off, or any intensity level in between, as well as OverDrive™ strobe mode.

View Matrox Imaging Q&A session regarding Photometric stereo techniques.


RM75-4Z Series

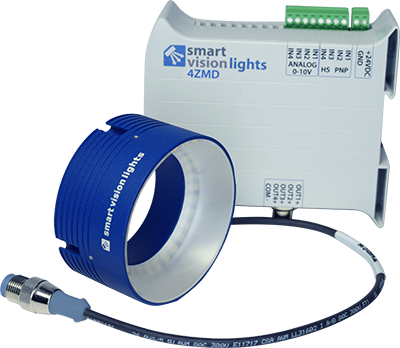

RM75-AZThe compact and powerful RM75-4Z Mini Ring Light is a low-angle ring light that works best for dark field ring applications. The light can also be used for radial illumination. The RM75-4Z has four zones, making it a quadrant light that can have each individual zone controlled independently of one another.

4ZMD - The 4ZMD is an external driver that permits control of up to four separate light zones either independently or simultaneously, in any combination. The 4ZMD has independent intensity controls and built-in Multi-Drive™, allowing a range to be set from 10%–100% for continuous operation or OverDrive™ strobe mode.

Recommended illumination usage: Dark Field, Radial

Product Details




RM140-4Z Series

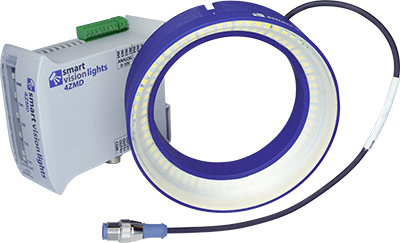

RM140-AZThe compact and powerful RM140-4Z Mini Ring Light is a low-angle ring light that works best for dark field ring applications. The light can also be used for radial illumination. The RM140-4Z series features an aluminum housing and is IP65 rated. The RM140-4Z has four zones, making it a quadrant light in which each individual zone can be controlled independently of each other.

4ZMD - The 4ZMD is an external driver that permits control of up to four separate light zones either independently or simultaneously, in any combination. The 4ZMD has independent intensity controls and built-in Multi-Drive™, allowing for a range to be set from 10%–100% for continuous operations or OverDrive™ strobe mode.

Recommended illumination usage: Dark Field, Radial

Product Details
